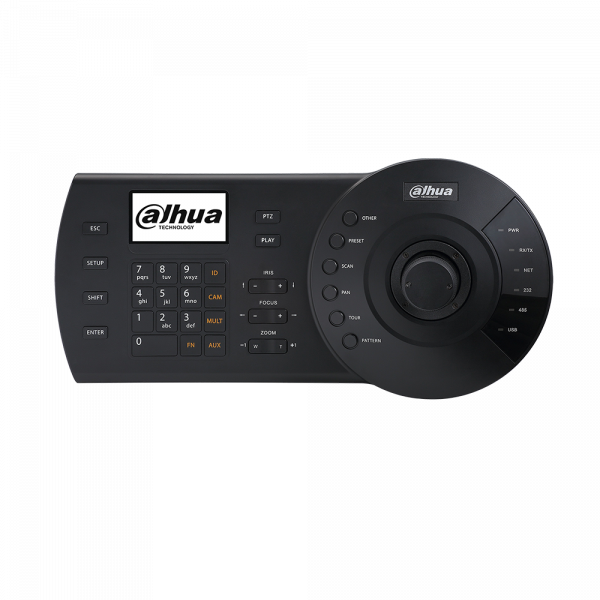

DHI-NKB1000

(ລາຄາ) 3,957,750

Network Keyboard & Control Keyboard & Dome keyboard

Keyboard to Control
> Dahua High Speed Dome (all models)
> Dahua Standalone DVR (KBD1000 & NKB1000 only)
> Dahua Network High Speed Dome (NKB1000 only)
> Network Video Server (NKB1000 only)
Connection
> NKB1000: RS485, RS422, USB, RS232 & Network
> KBD1000: RS485, RS422, USB & RS232
> KB1000 : RS485, RS422 & USB (RS422 reserved for all models)
Functions
> Three Dimensional Joystick Control of PTZ Functions
> Preset Position, Auto Scan, Auto Pan, Auto Tour & Pattern
Auxiliary Functions
> On-Screen Menu & User Operation Procedure Tips
> Connect to SmartPSS or DSS platform via USB (NKB1000 only)

Model

Model

NKB1000

KBD1000

KB1000

General

Keyboard Key panel

Electromechanical

Joystick

3-axis, vector-solving, with twisting, return to-center head

Keyboard Connector

RJ-45, RS232, RS485, RS422, USB

RS232, RS485, RS422, USB

RS485, RS422, USB

Keyboard Communication

Direct Mode, Network Mode

Direct Mode

Direct Mode

Direct Mode

Interface:

1 RS232/2 RS485

DVR Protocol: DH-2

Dome Protocol: DH-SD1/PELCO-D/PELCO-P, etc

Interface:

1 RS232/2 RS485

Dome Protocol: DH-SD1/PELCO-D/PELCO-P, etc

Interface:

2 RS485

Dome Protocol: DH-SD1/PELCO-D/PELCO-P, etc

Network Mode

Interface: RJ45

DVR/Network Dome:

IP Address/Port/Protocol

N/A

N/A

Display

LCD, 75.2mm×33.85mm

Maximum Number of Users

64 (including “admin”)

Max RS485 Addresses (Each User)

256

Max Number of PTZ (IPC) That Can be Added over Network (Each User)

2048

Environmental

Power Supply

Power adapter, input 100V~240V 50Hz/60Hz, output DC12V/2A

Power Consumption

5W

Working Temperature

-10~+55℃

Working Humidity

10% ~ 90%

Atmosphere Pressure

86kpa~106kpa

Dimension

330mm×160(140)mm×37.5(21)mm (W×D×H)(height: 100mm including joystick)

Weight

2.5kg (Including package)
